When Your Solar Brain Fogs: Common Questions and Troubleshooting DAS Issues for Users

Imagine your solar farm as a living organism. The panels are its skin, soaking up the sun. The inverters are its muscles, converting energy. But the Data Acquisition System (DAS) – that's the brain. It gathers all the vital signs, processes them, and tells you if everything's running smoothly. When your DAS encounters hiccups, it's like your solar brain developing a fog, potentially leading to lost data, missed revenue, and operational headaches. For anyone operating or managing a solar PV site, understanding common questions and troubleshooting for DAS users isn't just good practice—it’s absolutely essential for peak performance and peace of mind.
This guide is designed to empower you, the user, with the knowledge to diagnose and often resolve the most frequent DAS issues. We’ll cut through the jargon, giving you actionable insights in a clear, human voice.
At a Glance: Quick Troubleshooting Takeaways

Unique IDs are King: Ensure every device (inverter, sensor, meter) has a unique ID and IP address. Duplicates are a prime suspect.
Network Fundamentals: Double-check IP addresses, subnet masks, and gateway settings for accuracy.
Serial Scrutiny: Pay close attention to A/B terminal connections and proper grounding for string inverters.
Data Logger Capacity: Don't overload your data logger; match its processing power to your site's scale.
Power Resilience: Configure Windows-based data loggers for automatic restart after power events.
MET Station Harmony: Assign unique IDs to all meteorological sensors, even identical ones.
Revenue Meter Precision: Select the right meter for your voltage/current and configure its network and Modbus settings meticulously.
Cabling Clarity: Understand the limits of Ethernet and the specific checks required for fiber optic runs on larger sites.

The Silent Language: Unpacking DAS Communication Issues

At the heart of any DAS problem often lies a communication breakdown. Devices need to "talk" to the master data logger, and if their lines get crossed or they're speaking different languages, data goes missing. These issues often stem from fundamental misconfigurations, particularly concerning how devices identify themselves on the network or serial chain.

The Unique ID Rule: Your First Suspect

Think of your DAS network as a meeting room. Each person (device) needs a unique name (ID) to be addressed correctly. If two people respond to "John," confusion reigns. The same principle applies here: each device—be it an inverter, sensor, or meter—requires a unique ID and IP address to communicate effectively with the master data logger.

What to Look For: Devices frequently going offline, intermittent data, or multiple devices showing the same data (which means one is overriding the other, or they're indistinguishable).
Practical Steps:

Inventory: Maintain a detailed log of every device's assigned ID and IP address.
Cross-Reference: When an issue arises, immediately check your documentation for potential ID or IP address overlaps.
Default Settings: Be wary of devices that might revert to factory default IDs after a power cycle or reset.

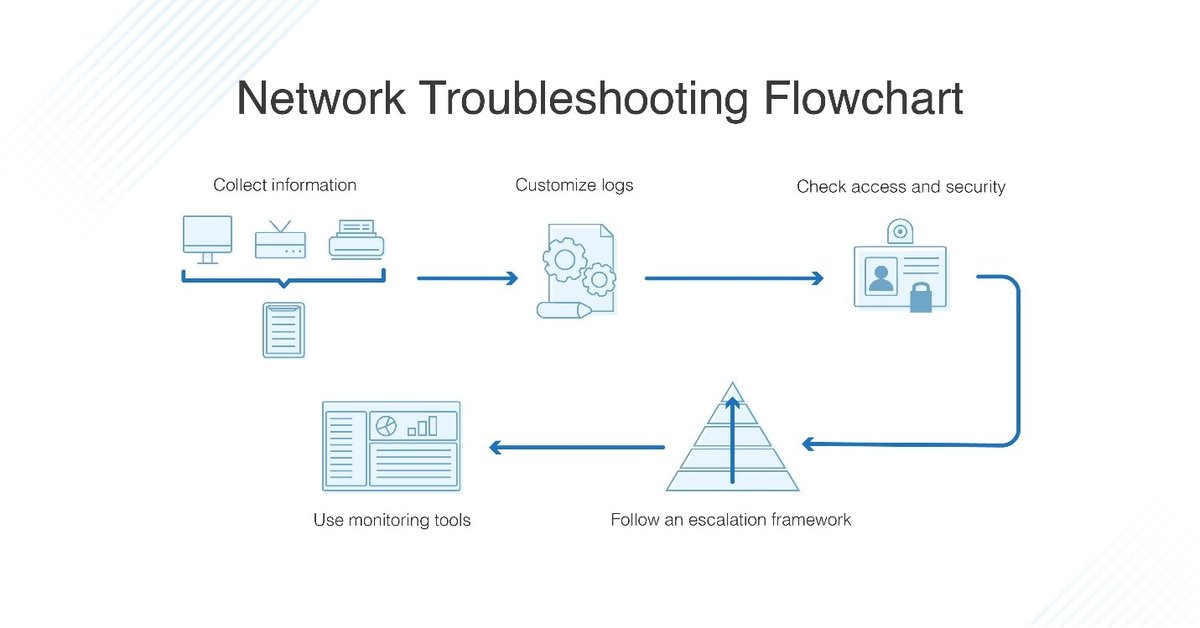

Networking Nightmares: IP Address & Subnet Woes

Networking issues are a primary culprit behind devices going offline. These aren't always complex hacks; more often, they're simple typos or oversight.

Overlapping, Duplicated, or Mistyped IP Addresses: Just like the unique ID rule, IP addresses on your network must be distinct. A duplicated IP will cause conflicts, making both devices unreliable. A mistyped IP simply means the logger can't find the device.
Practical Steps: Use network scanning tools to identify all active IPs on your network. Verify each device's configured IP against your site documentation. Consider implementing a static IP addressing scheme for critical DAS components to reduce DHCP-related complications.
Incorrect Subnet Mask Gateways or Network Mask Misconfiguration: These settings dictate how devices understand the boundaries of your local network and how they reach devices outside it. An incorrect subnet mask can make devices think they're on a different network, preventing communication.
Practical Steps: Ensure the subnet mask, gateway IP, and network mask are consistent across all devices within the same network segment and match your overall network infrastructure. Consult your network administrator or ISP for these details if unsure.

Serial Snags: The A/B & Grounding Games

For string inverters, which are common in solar PV DAS projects, serial communication (often RS485) introduces its own set of potential pitfalls.

Swapped A and B Communication Terminals: RS485 communication relies on differential signaling, meaning two wires (A and B) carry inverted signals. If these are swapped, the signals cancel each other out, and communication fails.
Practical Steps: Always verify wiring according to the inverter manufacturer's schematic. A simple swap of two wires can fix an entire string of offline inverters.
Improper Ground Connection to Inverters: A poor or missing ground connection can lead to electrical noise interference, dropping an entire inverter string offline, or causing intermittent data.
Practical Steps: Ensure all inverters are properly grounded according to electrical codes and manufacturer specifications. Check ground continuity with a multimeter. Proper grounding also enhances safety and protects against surges. For more specific guidance on these connections, you might find it helpful to review detailed RS485 communication troubleshooting guides.
Overlapping or Duplicated Device IDs (Serial): Similar to IP addresses, serial devices also use unique IDs within their communication chain. Duplicates here will also lead to devices not responding or conflicting.
Practical Steps: Systematically check and confirm the Modbus or serial ID for each inverter or device in the string. Some devices have physical dip switches, others are configured via software.

The Data Collector's Conundrum: Data Logger Deep Dive

Your data logger is the brain's central processing unit. It talks to all the field devices, gathers their data, and packages it up for your monitoring platform. When it falters, the entire data flow grinds to a halt.

Overloaded Brains: Device Limit Limitations

Data loggers, like any computer, have limits to their processing power and communication capacity.

Too Many Devices, Slow Throughput: If a data logger is trying to poll data from too many inverters, sensors, and meters simultaneously, it can become overwhelmed. This leads to slow data acquisition, missing data points, or complete communication failures, especially on larger DAS sites.
Practical Steps: Evaluate your site's current and future device count. Choose a data logger with sufficient processing power and communication ports for your needs. For very large sites, consider a distributed DAS architecture with multiple data loggers, each handling a specific section of the site, to manage the load.

The Silent Reboot: Windows-Based Logger Traps

Many data loggers operate on Windows-based industrial PCs. While powerful, they introduce a common vulnerability after a power event.

Not Restarting Automatically After Power Loss: Without proper BIOS settings, a Windows-based data logger may not automatically restart after a power outage and restoration. This can lead to significant data loss if not addressed promptly.
Practical Steps: Access the BIOS settings of your data logger's industrial PC and configure it to "Always On" or "Power On After AC Loss" (or similar wording). Test this setting by simulating a power cut and verifying automatic restart and software operation. This awareness and proactive testing are critical.

Speaking the Same Language: Protocol & Connection Checks

For your data logger to successfully pull data, it needs to be configured correctly for the communication type it's using.

Communication Protocol and Connection: Device ports on your data logger must be configured with the correct Modbus communication protocol (e.g., RTU, TCP/IP) and use the appropriate physical connection type (RS485 or RS232) that matches the field devices.
Practical Steps: Verify the Modbus settings (baud rate, parity, stop bits, protocol variant) on both the data logger and the devices it's communicating with. Ensure the physical wiring matches the chosen connection type (RS485 uses two wires, RS232 typically three). Mismatched settings are a common, frustrating, yet easy-to-fix problem.

Weathering the Storm: MET Station Troubleshooting

Meteorological (MET) sensors are crucial for understanding site performance. They measure everything from global horizontal irradiance (GHI) and plane-of-array (POA) temperature to wind speed. Issues here can be a blend of software configuration and physical hardware problems.

Identity Crisis: Programming ID Conflicts

Just like inverters, MET sensors need their own unique identifiers, especially when multiple identical units are present.

Conflicting IDs: This occurs when multiple identical sensors are connected to the same hub, or if sensors on different MET stations happen to use the same ID and are connected to the same logger. The logger can't differentiate them, preventing data communication.
Practical Steps: Carefully assign and document unique IDs for every sensor, even if they're the same model. Many sensors have configurable IDs via software or dip switches. Regularly reviewing your MET station configuration documentation can prevent these conflicts.

Hardware Hurdles: Physical Sensor & Power Problems

Sometimes, the problem isn't in the code, but in the physical world.

Using Different Channels (A and B) for the Same Sensor: If a single sensor requires a two-channel input (e.g., for redundant data or specific signal types) and only one channel is connected or configured, data won't be read correctly.
Practical Steps: Refer to the sensor's wiring diagram and the data logger's input specifications. Ensure all required channels are correctly wired and configured.
Power Surges & Fuses: MET sensors, being exposed to the elements, are vulnerable to power surges caused by lightning or grid fluctuations. This can damage internal components.
Practical Steps: Always ensure that fuses are intact and properly rated. Verify that surge suppressors are correctly installed and connected to protect the sensors. Visually inspect sensors for physical damage.
Grounding Issues: Improper grounding can affect sensor readings, especially for sensitive irradiance sensors, leading to noisy or inaccurate data.
Practical Steps: Confirm proper grounding for all MET sensors and their mounting hardware. A clean, stable ground reference is vital for accurate readings.

The Bottom Line: Ensuring Accurate Revenue Metering

The revenue meter is arguably the most critical component for your solar site's finances, as it measures total power produced and, therefore, your earnings. Preventing issues here is paramount.

Choosing Your Champion: Correct Meter Selection

The first step in preventing revenue meter issues happens long before installation.

Correct Selection: Always choose the revenue meter based on the site’s operating line voltage and maximum current. An undersized meter could be damaged or provide inaccurate readings, while an oversized one might not be cost-effective or calibrated optimally for your typical load.
Practical Steps: Consult with an electrical engineer or the meter manufacturer to ensure the chosen meter's specifications (voltage, current, phase configuration) perfectly match your site's electrical design.

Network & Modbus Mismatches: The Data Integrity Duo

Once selected, the meter needs to communicate correctly and speak the right language.

Network Settings: Just like other DAS devices, the revenue meter needs proper network settings, including a unique IP address and correctly configured network and gateway, for seamless communication with the DAS.
Practical Steps: Assign a dedicated static IP address to the revenue meter. Verify subnet mask and gateway settings, double-checking against your site's network plan.
Reporting Capabilities/Modbus Protocol: The revenue meter must be configured correctly with Modbus protocol enabled, and the proper word protocol selected. Incorrect configurations (e.g., "reverse word" if not needed, or vice versa) can lead to data that appears numerically correct but represents entirely inaccurate values (e.g., KWh instead of MWh, or negative values). The integrity of your revenue data hinges on correct Modbus configuration and regular calibration checks.
Practical Steps: Carefully follow the meter's configuration guide for Modbus settings. Pay close attention to register mapping, data type, and byte/word order. Test the readings against known values if possible, or use a Modbus master tool to directly poll the meter and compare.

The Unseen Paths: Common Cabling Issues

While often overlooked, the physical infrastructure—your cabling—is the backbone of your DAS. If it's compromised, even the best-configured devices can't communicate.

Ethernet vs. Fiber: When Distance Matters

The choice of cabling often depends on the physical layout of your site.

Ethernet Limits: While sufficient for devices within 300 feet (approx. 90 meters) of the DAS enclosure, standard Ethernet cables (Cat5e, Cat6) suffer from signal degradation over longer distances.
Fiber for Long Distances: Larger sites require fiber optic cabling for reliable long-distance data transmission. Fiber transmits data as light, making it immune to electrical interference and capable of covering kilometers without signal loss.
Practical Steps: Map out your site's distances. If runs exceed Ethernet's reliable range, plan for fiber optic infrastructure.

Fiber Follies: Breaks, Connectors, and Terminals

Fiber optic cabling offers superior performance but is more complex than plug-and-play Ethernet.

Breaks and Damaged Cables: Fiber optic cables are more delicate than copper. A sharp bend, rodent damage, or improper installation can cause internal breaks, completely severing communication.
Practical Steps: Visual inspection for physical damage. If a break is suspected, professional fiber testing equipment (OTDR - Optical Time-Domain Reflectometer) is needed to locate the fault.
Proper Connectors & Patch Panels: Fiber requires specific connectors (LC, SC, ST, etc.), and connections are often made via fiber jumpers into patch panels and switches. Any dirty, damaged, or improperly seated connector can significantly degrade or block the signal.
Practical Steps: Ensure all fiber connections are clean, secure, and the correct type. Regularly inspect patch panels for loose connections.
Correct Transmitter/Receiving Terminal Connections (Tx/Rx): Fiber optic communication requires light to be sent from a transmitting (Tx) port and received by a receiving (Rx) port. If these are crossed or misconnected, no data flows.
Practical Steps: Always ensure the Tx port of one device connects to the Rx port of the other, and vice-versa. This is often the simplest fix for a seemingly dead fiber link. Understanding the fundamentals of fiber optic connectivity can save you hours of troubleshooting.

Beyond the Checklist: Proactive Maintenance & Next Steps

Troubleshooting is reactive, but the best approach to DAS reliability is proactive. Regular maintenance, meticulous documentation, and ongoing training are your best defenses against downtime.

Regular Checks: Implement a schedule for routine checks of your DAS, including visual inspections of cabling, reviewing data logs for anomalies, and verifying device status.
Comprehensive Documentation: Keep detailed, up-to-date records of every device's ID, IP, Modbus settings, wiring diagrams, and network configurations. This documentation is your roadmap for quick diagnostics.
Continuous Training: Ensure your O&M team is well-versed in DAS operation and common troubleshooting steps. A knowledgeable team can often resolve issues before they escalate.
Ultimately, your goal is a DAS that reliably collects and transmits accurate, actionable data. This data isn't just numbers; it's the intelligence that drives your operational decisions, optimizes performance, and maximizes revenue. From a single site to complex, large-scale systems like those managing attractions at Disney World, meticulous attention to DAS health ensures your solar brain remains sharp and responsive. By understanding these common questions and troubleshooting techniques, you're not just fixing problems—you're ensuring the long-term success of your solar investment.
